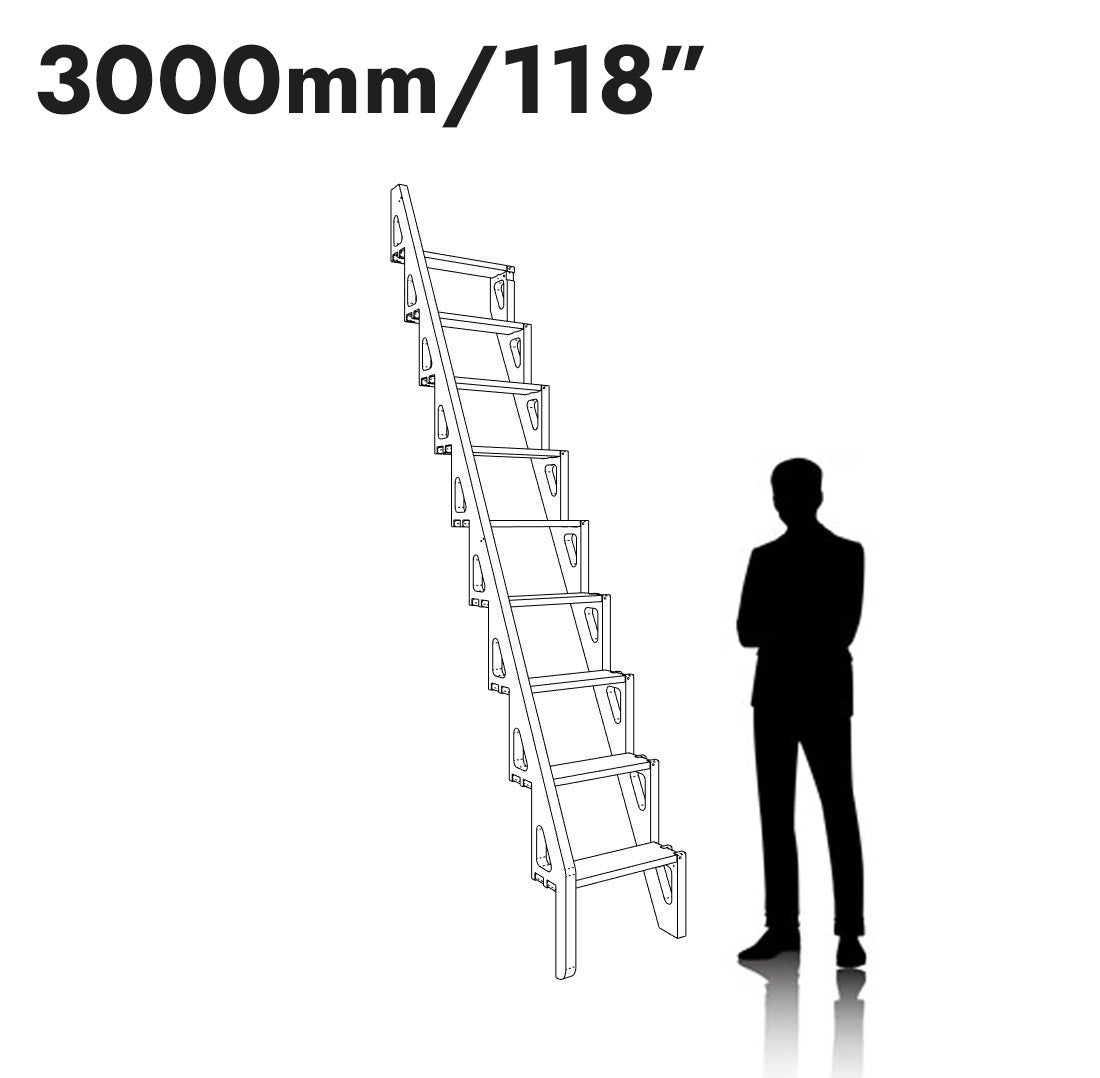

Folding Attic Ladder 3.0m / 118.1in

Folding Attic Ladder 3.0m / 118.1in

Fits Floor to Floor Height 2950–3050mm/116.14–120.08in

$3,766.86 AUD
$3,766.86 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Fold Direction
Handrail
Bi-Folding Hatch

Requires Attachment Wall Length: 1344mm/52.91in

Important: This model can only be adjusted within the height range shown above. If your finished floor-to-floor height falls outside this range, please choose another Prefab size or request a Custom design.

View full details

 Will this size fit?

  • Fits Floor to Floor Height 2950–3050mm/116.14–120.08in

  • Requires Attachment Wall Length: 1344mm/52.91in

  • Unfolded Width 575 mm/22.64 in; 581mm/22.87in with handrail
View Specification Sheet

 Choose your setup

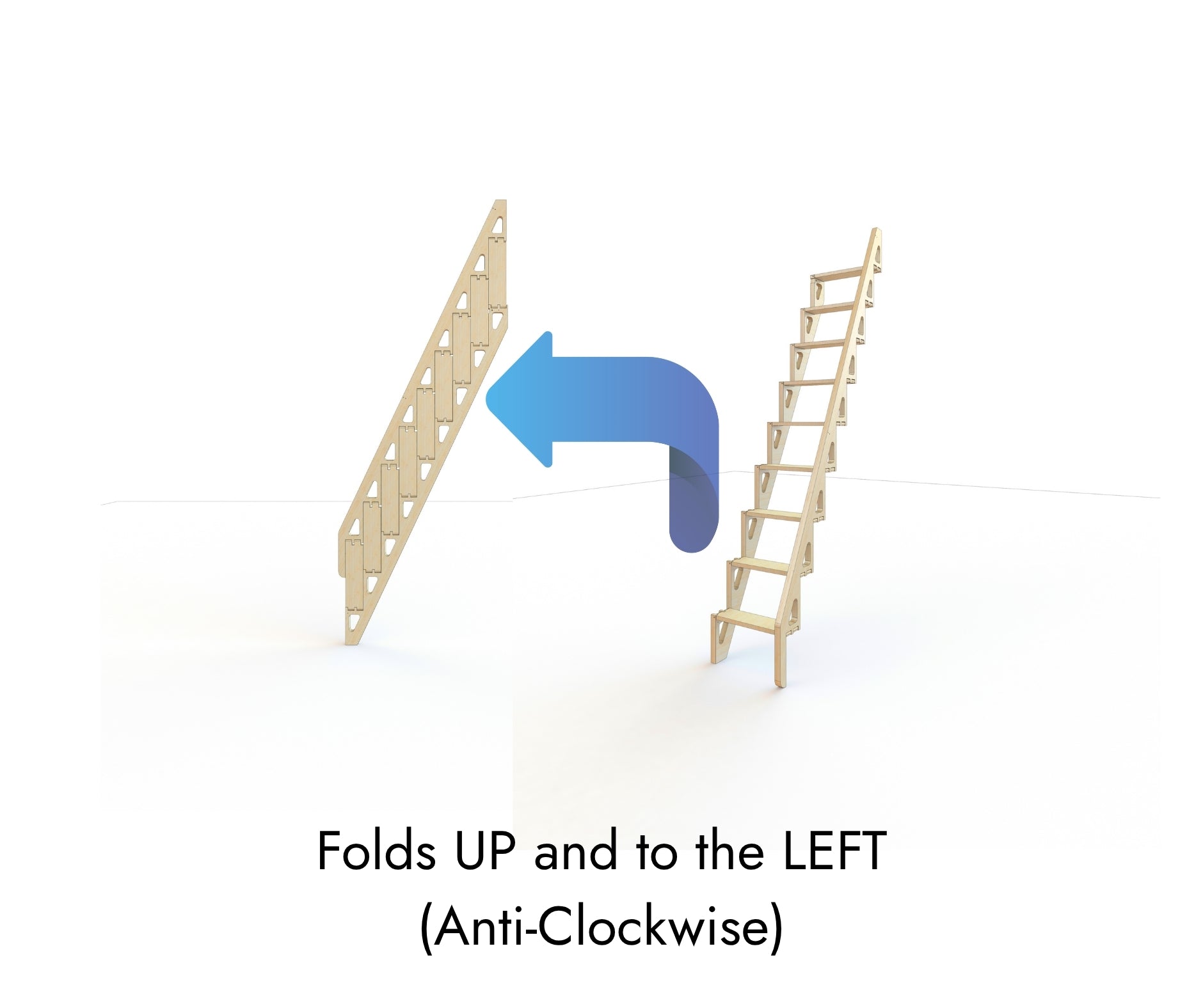

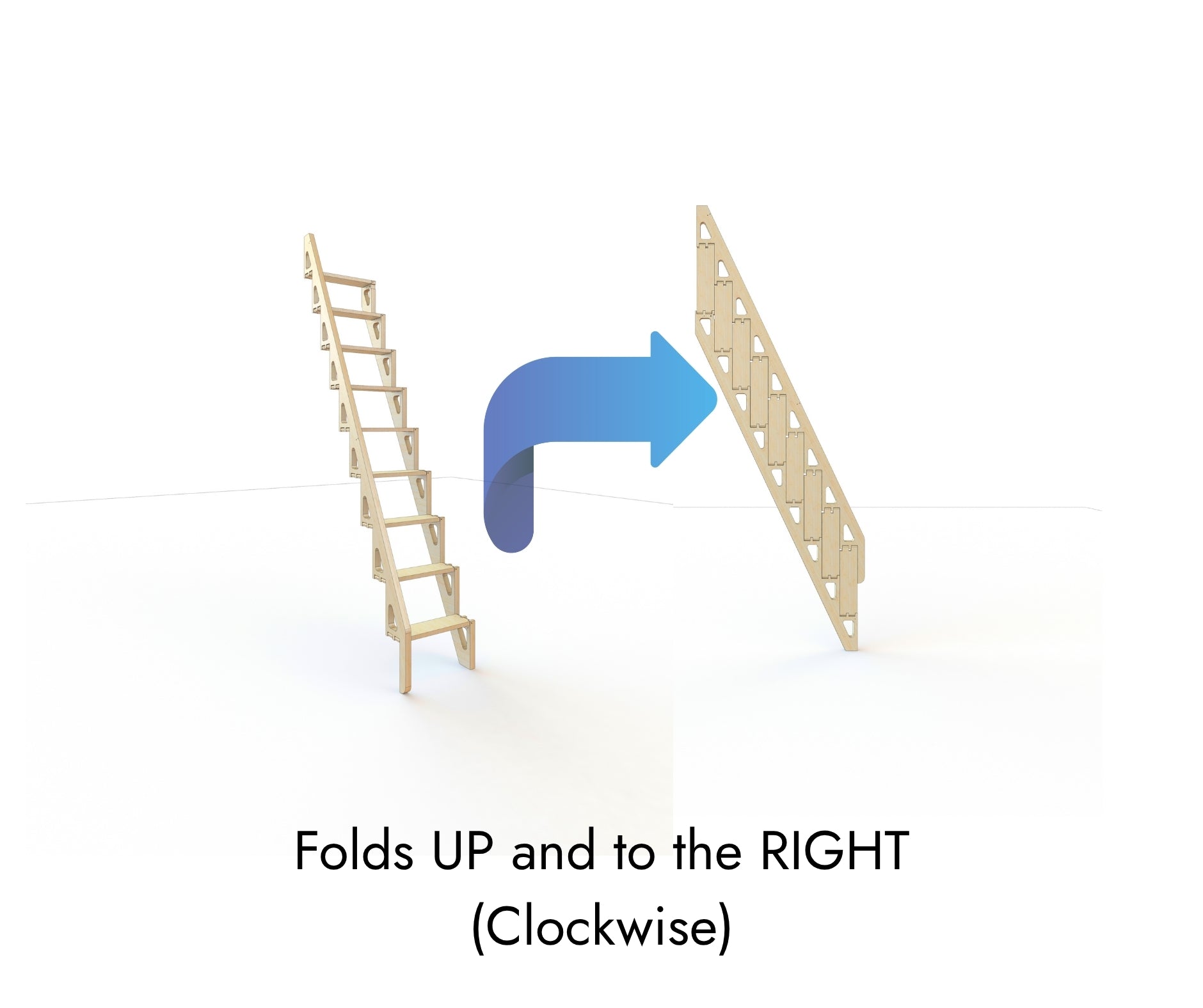

  • Choose your fold direction

    Each Prefab Ladder is manufactured specifically as either a Left Fold (anticlockwise) or Right Fold (clockwise) model.

    Select the direction that allows the Ladder to fold flat against your chosen attachment wall.

    Please choose your fold direction carefully before ordering, as it cannot be changed after manufacture.

  • Optional Stand-Off Handrail

    Add additional hand support with our brushed aluminium Stand-Off Handrail, designed specifically for the Bcompact Fold. It sits clear of the folding structure so the handrail remains accessible while using the Ladder, while still allowing the Ladder to fold neatly back against the wall. Select With Handrail above when configuring your Ladder.

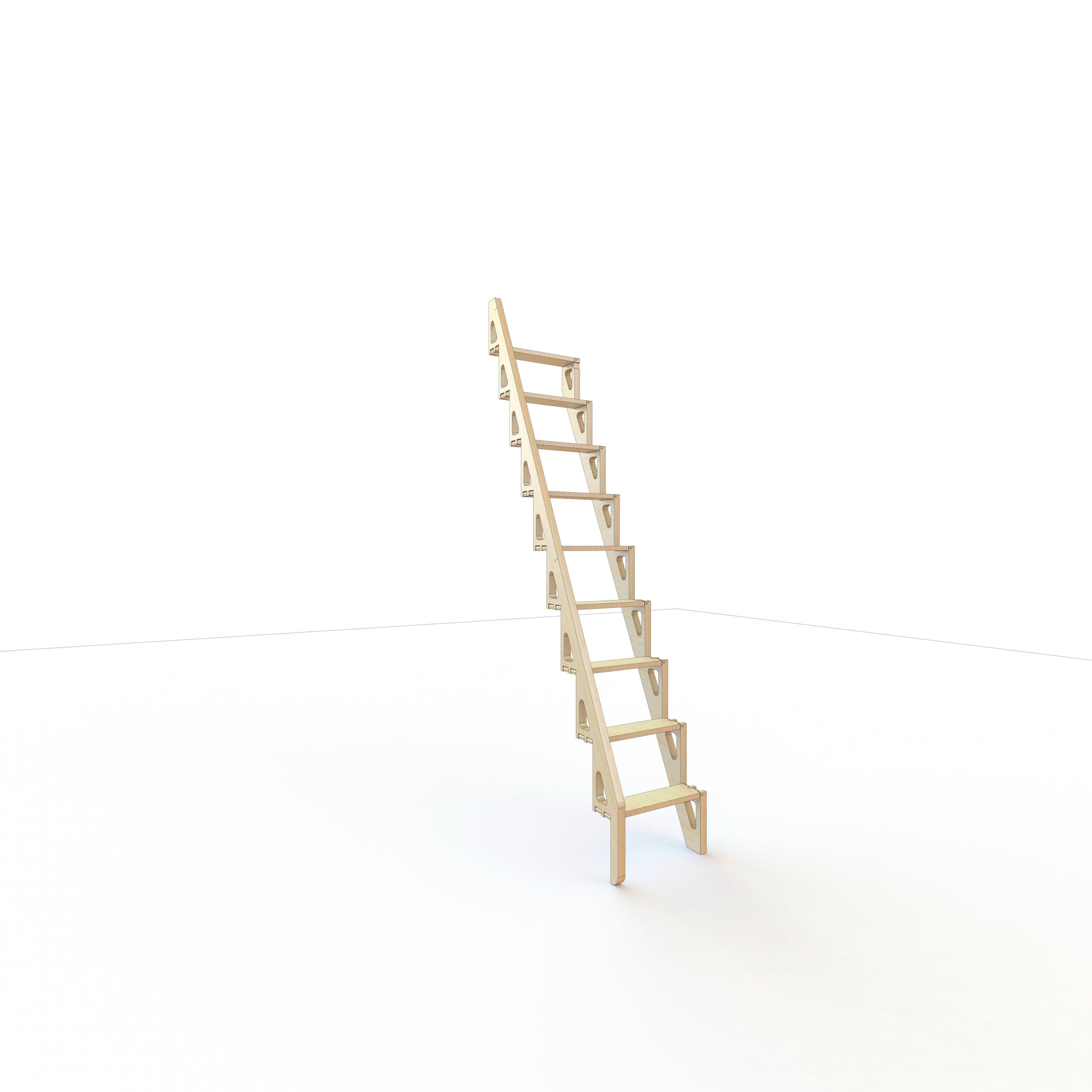

Full-Fold Design

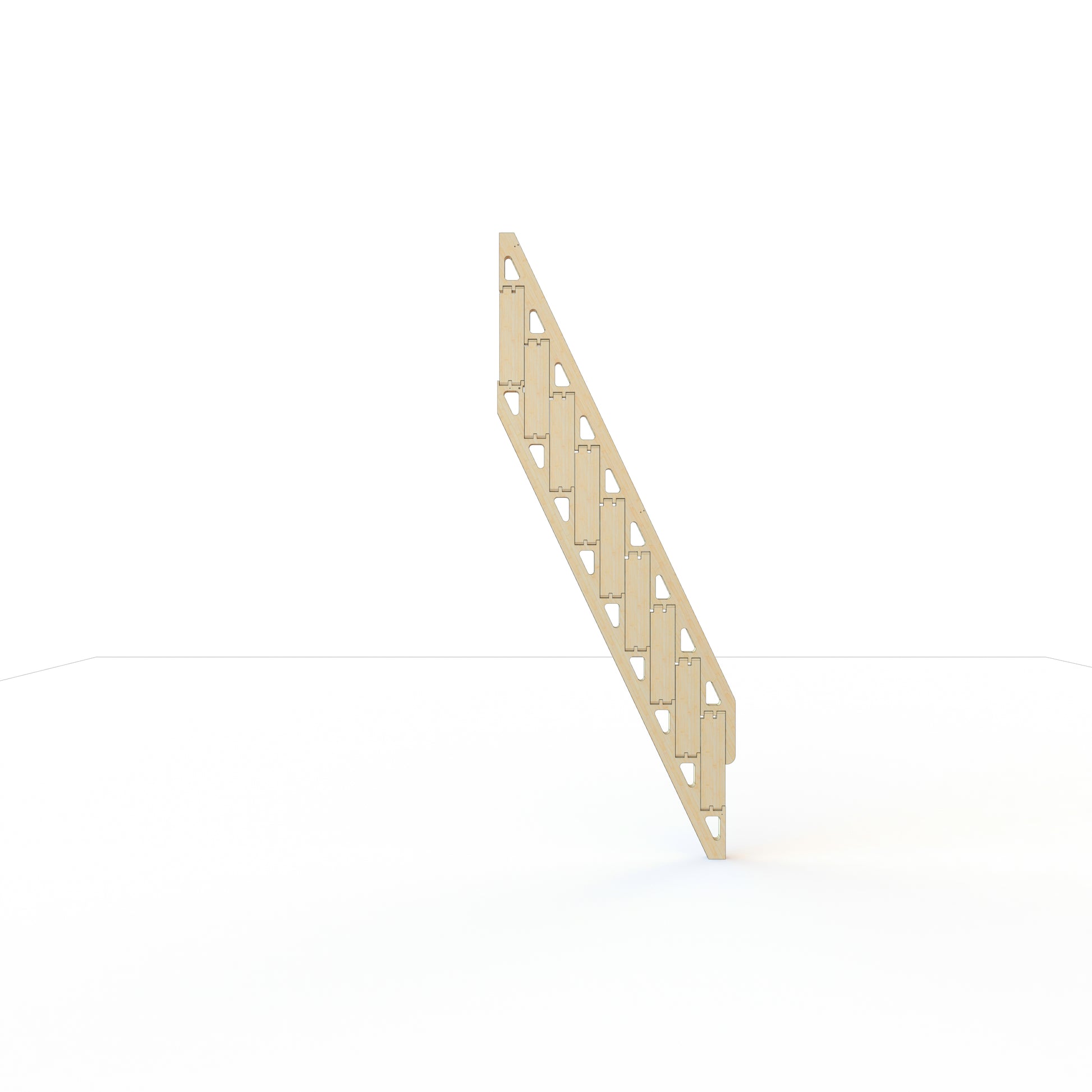

The Prefab Ladder uses Bcompact’s full-fold configuration, allowing the complete Ladder to fold flat against the supporting wall when not in use.

There is no fixed top tread, so the whole Ladder folds away as one clean, compact unit.

★★★★★ REVIEW - USA

“In my opinion, this is the BEST folding, compact ladder on the market.
Ordering was easy and straight forward... The installation instructions were very clear and easy to follow.”

— Clark H., USA

Google Reviews

Crafted from engineered bamboo

Each Prefab Ladder is made from engineered bamboo and finished in a clear protective polyurethane coating.

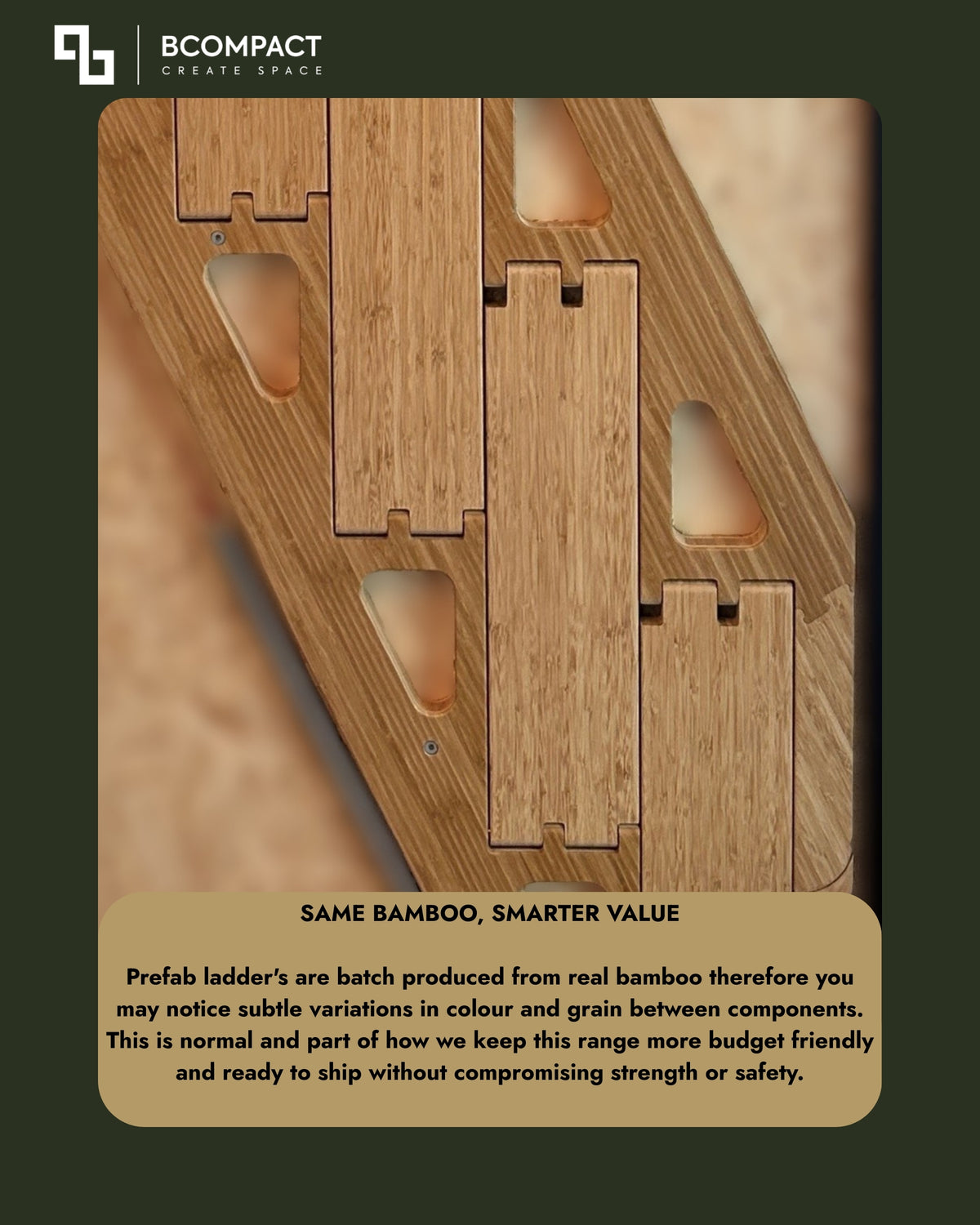

The natural grain and colour variation of bamboo means every Ladder has its own individual character, while the precision-cut construction keeps the overall appearance clean and consistent.

Designed and manufactured in Australia, each unit is CNC cut, hand finished and assembled at our Central Coast factory.


Natural bamboo finish only.

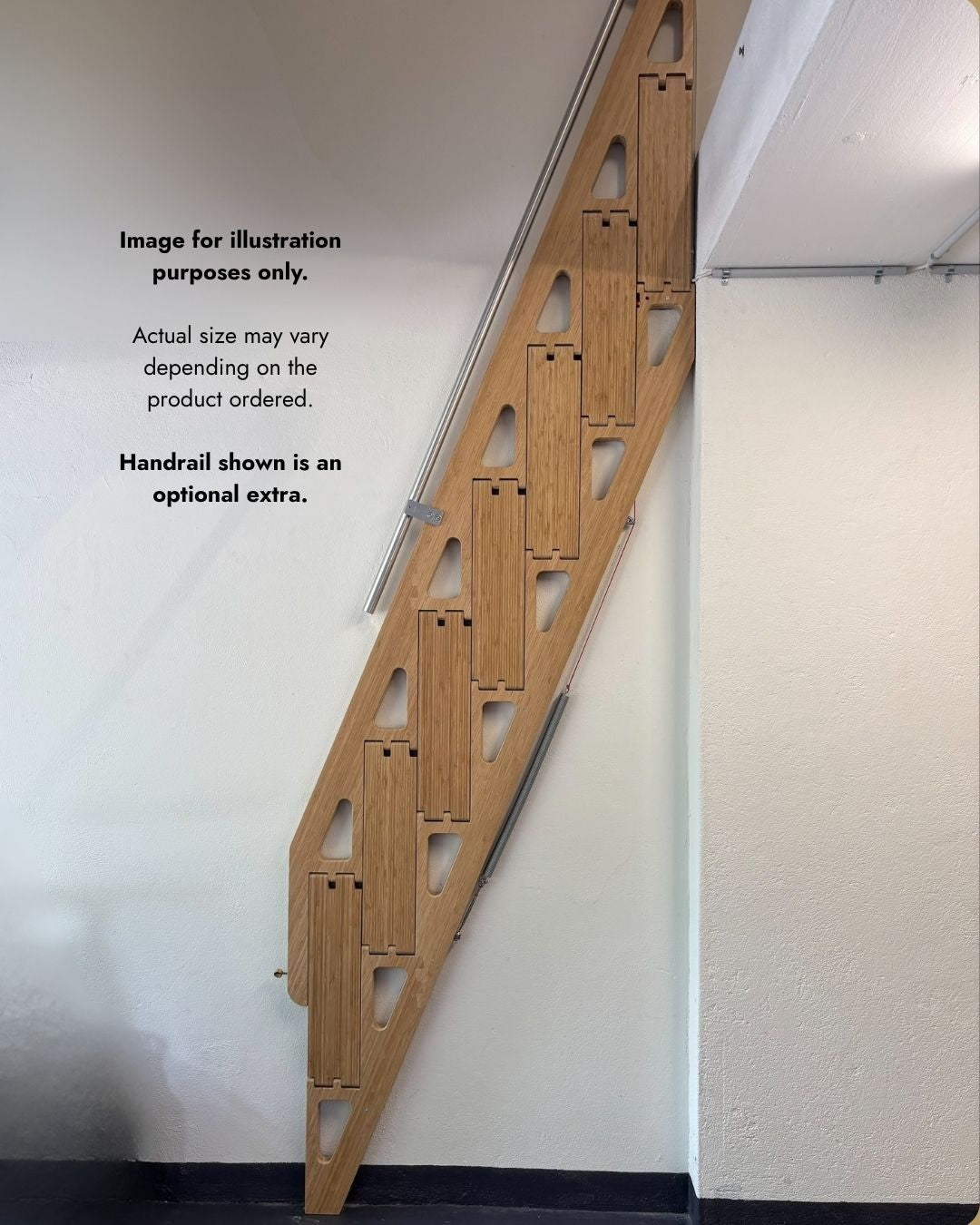

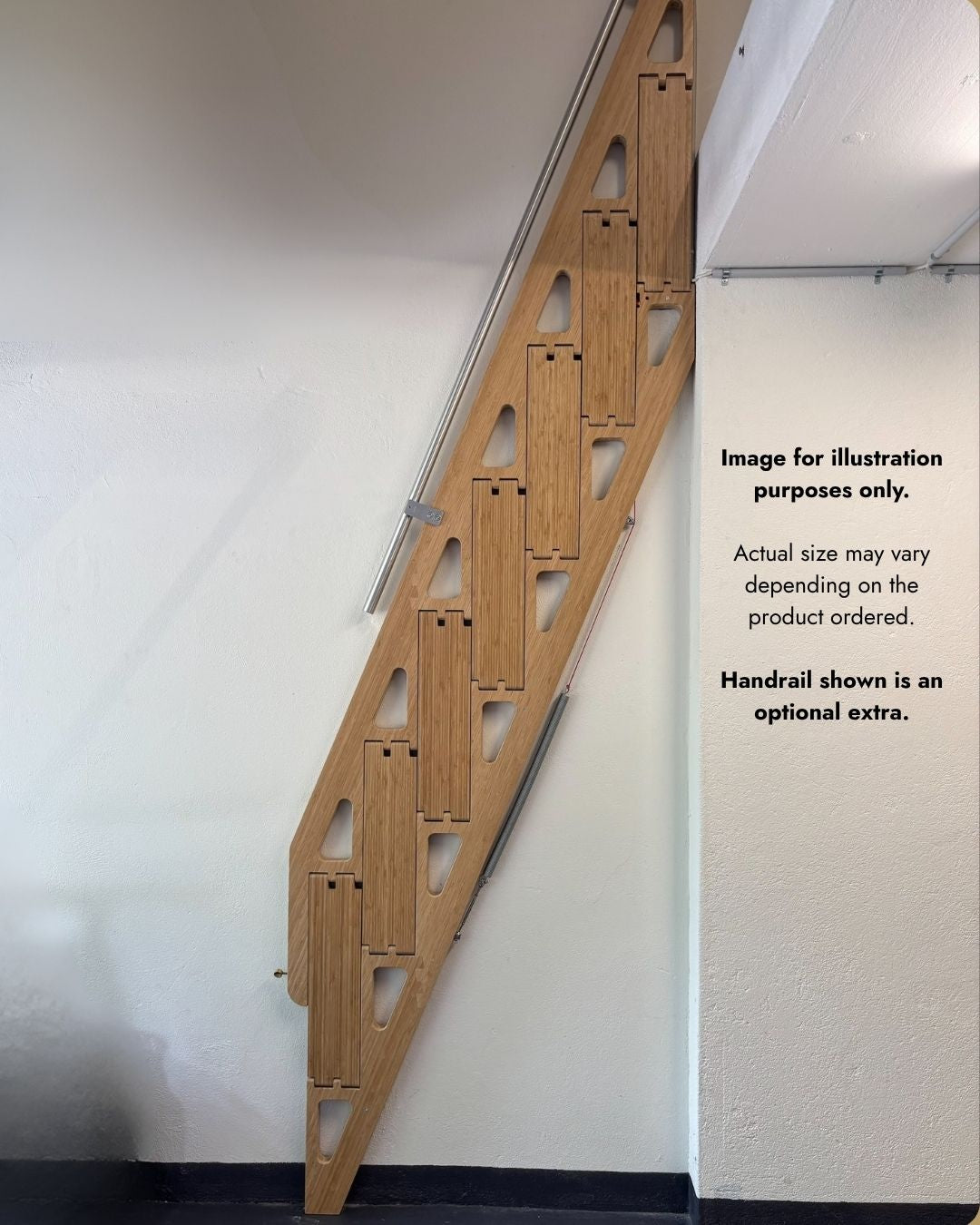

 See a real prefab installation

  • Folded flat against the attachment wall

    This installation shows the 2.1m model with the optional handrail. Shown here in the fully folded position, keeping the floor area clear when access is not required.

  • Open for access

    This installation shows the 2.1m model with the optional handrail. The same Prefab Ladder deployed, showing the fixed 65° angle and consistent 300mm/11.81in step rise used across the Prefab range.

  • Real 2.1m/82.68in installation

    This installation shows the 2.1m model with the optional handrail. Overall height, run length and number of treads vary between Prefab sizes, while the width, angle and step rise remain consistent.

 Everything you need to know

Dimensions & Specifications

  • Floor-to-floor height:
    Modifiable range: 2950–3050 mm / 116.14–120.08 in
  • Required attachment Wall length: 1344 mm / 52.91 in
  • Angle: 65°
  • Step rise: 300 mm / 11.81 in
  • Overall width unfolded:
    575 mm / 22.64 in without handrail
    581 mm / 22.87 in with handrail
  • Overall width folded:
    40 mm / 1.57 in without handrail
    46 mm / 1.81 in with handrail
  • Height above upper level when folded:
    535 mm / 21.06 in without handrail
    1165 mm / 45.87 in with handrail
  • Step dimensions:
    142 × 560 × 25 mm / 5.59 × 22.05 × 0.98 in
  • Minimum recommended ceiling access opening: Based on an upper-floor thickness of 250 mm / 9.84 in.
    Length: 1136 mm / 44.72 in
    Width: 585 mm / 23.03 in without handrail
    Width: 595 mm / 23.42 in with handrail
  • Load capacity: 200 kg / 440 lb
  • Material: Engineered bamboo with optional aluminium handrail
  • Finish: Sealed natural bamboo with P4 & P5 non-slip tread surfaces
  • Configuration: Full-Fold design with no fixed top tread
  • Fold direction: Left or Right (to be selected on purchasing)

  • Optional Stand-Off Handrail:
    Distance between stringer and handrail: 38.5 mm / 1.52 in
    Height above upper floor when open: 630 mm / 24.8 in
    Bracket length: 100 mm / 3.94 in

Fit, Modification & Returns

The Prefab Ladder is designed for a specific floor-to-floor height and may only be modified within the approved range of ±50mm/±1.97 in.

If your finished floor-to-floor height falls outside the stated range for the selected model, the Prefab Ladder is not suitable for your space and should not be purchased on the assumption that it can simply be shortened, extended or otherwise altered to fit.

Maintaining the designed 300 mm/11.81in step rise is an important part of safe ladder use. Altering the Ladder beyond its approved range can create inconsistent step heights, increase trip risk and may result in an installation that does not meet applicable building or access requirements.

Measurements must be taken from finished floor to finished floor, including completed flooring, ceiling finishes and sub-floors.

Once a Prefab Ladder package has been opened, installed or modified, it cannot be returned, exchanged or refunded. Unopened returns may be considered subject to the conditions in our full Returns & Warranty Policy.

Outside the approved height range?
Choose a Custom Folding Stair or Ladder designed specifically for your space.

Get a Custom Quote →

View Full Returns & Warranty Policy →

Assembly & Installation

Your Prefab Ladder is supplied with assembly and installation documentation to guide your installer through the process.

The Ladder must be securely fixed to a suitable attachment wall and installed in accordance with the supplied instructions.

For best results, we recommend reviewing all measurements and installation requirements before ordering.

Shipping & International Orders

Current dispatch time is approximately 5–10 business days.

We ship Bcompact products throughout Australia and internationally from our factory in Australia.

International orders may be subject to local import duties, taxes, customs processing fees or other charges imposed by the destination country.


Read our International Shipping Guide →

Warranty & Product Care

All Bcompact Prefab Ladders include a 1-Year Manufacturer’s Warranty covering defects in materials or workmanship under normal indoor use.

For residential/commercial indoor installations, customers may apply for a Conditional 5-Year Extended Warranty by submitting the required installation video and photos within 90 days of delivery.

Outdoor or semi-outdoor installation is not recommended and is not covered under the standard warranty.

Warranty coverage excludes normal wear and tear, incorrect installation, misuse, modification, neglect and damage caused by environmental exposure.

View full Warranty Policy →

Modifying the Ladder outside the approved size adjustment range may affect warranty coverage.

Standard size not quite right?

If your floor-to-floor height, available run or preferred configuration falls outside the Prefab range, we can design a Custom Folding Stair or Ladder specifically for your space.

Design Your Solution
