Side Folding Ladder - 2.2m/86.61" Height - Customized from 1.2m/47.2" to 3.7m/145.7". Wall Mounted

Each Bcompact Folding Ladder is custom made to your specifications, offering an elegant, space-saving solution for any environment. This product is for a floor-to-floor height of 2.2m/86.61".

Want to know if our product will fit your space?
We’ll need photos and a few key details from you first! Simply fill out our Quote Request Form or email us directly at sales@bcompact.com.

Our team will respond within 3 business days with a comprehensive preliminary quote, including multiple options and pricing (if applicable), so you can make an informed choice before committing to an order.

Please note: The price displayed is an estimate only and may vary based on confirmed dimensions, final design, and exchange rate fluctuations.

The Bcompact Folding Ladder is a sleek, space-saving alternative to the folding staircase. Featuring the same bamboo side folding structure and smooth spring mechanism but with smaller dimensions making it ideal for tight spaces and lean budgets. Offering a simple, budget-friendly solution for replacing mobile/ship ladders, folding attic ladders, and some staircases.

Customizable in size, angle, width and height, its perfect for attics, rooftops, lofts, mezzanines, garages, storages, bedrooms, and even outdoors.

Minimum requirements for installation = Supporting Side Wall and front facade for attachment of fixed top tread. Upper floor clearance 550mm/ 21.65"

To customize to your own height/size go to www.bcompact.com/quote and build your own! With instant pricing! Or email our sales team at sales@bcompact.com!

Minimum requirements for installation = Supporting Side Wall and front facade for attachment of fixed top tread.

The product featured is:

Height: 2200mm / 86.61"

Run required: 908mm / 35.74" (must be attached to supporting side wall)

Left Folding. (Anti-Clockwise)

Product Width when unfolded 575mm /22.63". (Narrow)

Overall Width folded: 40mm / 1.57".

Angle: 68degree's

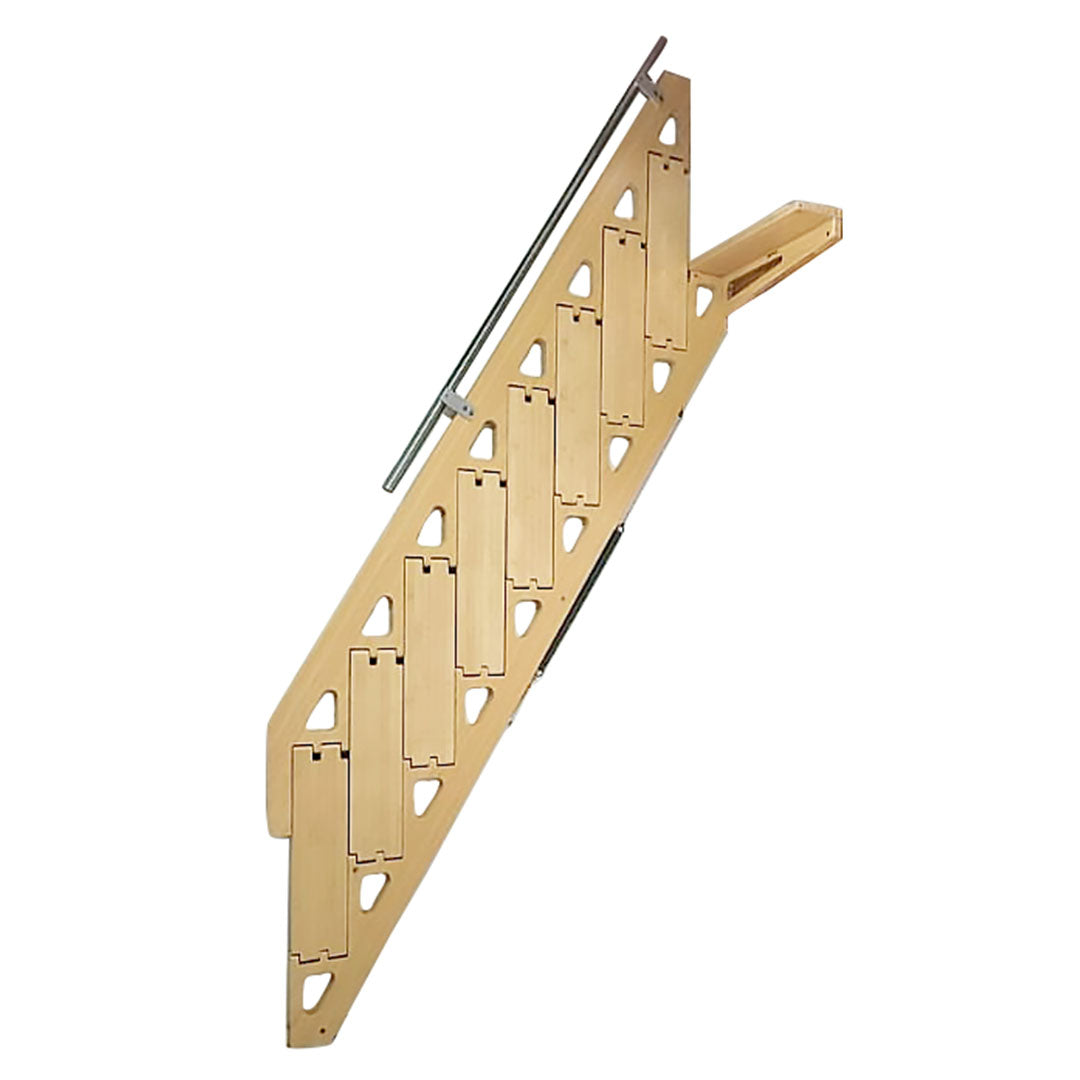

*Short Handrail pictured in image - available as an optional extra

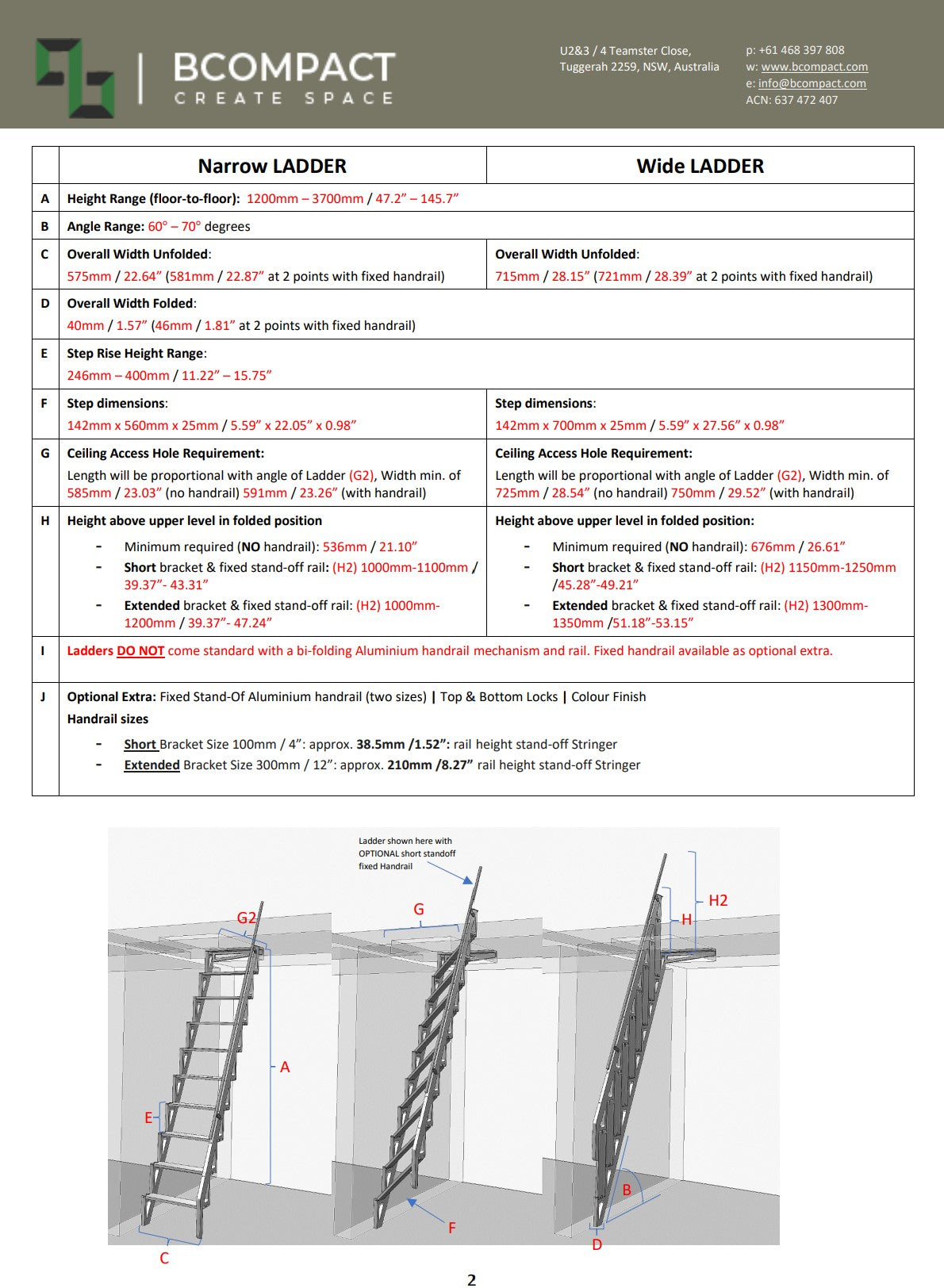

Customizable dimensions *additional costs may be incurred:

Height range 1200mm - 3700mm / 47.2" - 145.66"".

Width options: Narrow 575mm / 22.87" or Wide: 715mm / 28.39".

Run Length: 568mm - 2130mm/ 22.36" - 83.85". *dependable on height and angle

Number of treads: 4 - 15 *dependable on height and run available

Step Rise height: 285mm - 400mm / 11.22" - 15.74" *dependable on angle.

Angle: 60 - 70 degrees *dependable on height and run available

Left or right folding.

Stain options available

Optional Locks available

Optional Handrails available (Short or extended)

As each product is made to order, please expect to hear from our sales team to finalize details before production can begin. Pricing will change according to your exact measurements and chosen extras. Production time is 4-6 weeks from date of technical drawing approval and delivery is 5 -10 business days thereafter.
